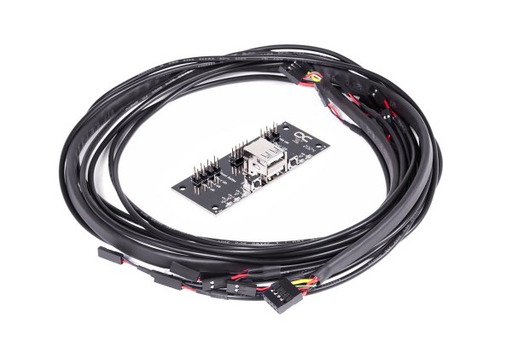

The Alphacool front I/O panel for Alphacool server cases in the 1 to 4U format offers two USB 2.0 ports in addition to the power and reset switch. The board also offers various status LEDs to keep a constant eye on the functions of the server rack. These include of course one status LED for the hard disk and power and three status LEDs for network connection. On the board there are 2-pin connectors for all LEDs and the power and reset switch. Three connectors for the network LEDs, one connector each for the power and reset switch and of course one connector each for the HDD and power LEDs. The board is fixed with 4 screws. The mounting holes have an inner diameter of 3.5 mm. The distances between the mounting holes ,measured from the center point, are 74 mm x 24 mm.
The Alphacool I/O front panel connection cables fit the Alphacool I/O front panels for server racks. The cable set consists of a total of 8 cables with a pure cable length without connectors of 80 cm. There are seven cables on 2-pin cables for network LEDs, power and reset switches and the HDD LED. One cable serves as USB 2.0 connection cable with the typical 9-pin header.
Confezione:
Peso Lordo: 0,24 Kg
Dimensioni Lorde: 100x100x100 mm
