  SCHEDA PRODOTTO

PartNumber: IGS-1000-8T4X |
|
PLANET Ip30 Industrial 8-port 10/100/1000t + 4-port 10g |
|
(Carta di Credito Web ) |
397,80 €
+ IVA
|
 |
| Sfp+ Ethernet Switch (-40~75 Degrees C, Dual 9~48v Dc/24v A |
|
|
|
| |
|
Pagamento e
Prezzo si cambiano nel Carrello, inserito il primo articolo. |
|
| |
|
|
|
|
| Marchio:PLANET |
|
|
|
|
| Codice:234807.01 |
|
|
|
|
| PartNumber:IGS-1000-8T4X |
|
|
|
|
| EAN:4711605287654 | |
|
|
|
|
 Disponibile c/o Vendor
|
|
|
|
|
| Notifica Disponibilità |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
 Altri articoli del Produttore: PLANET |
|
|
|
| Altri articoli nelle Categorie:/ Hardware / Networking / Switch |
|
|
|
|
|
| . |
|
Reliable Industrial Ethernet Networks with 10G Fiber and Plug and Play Configuration

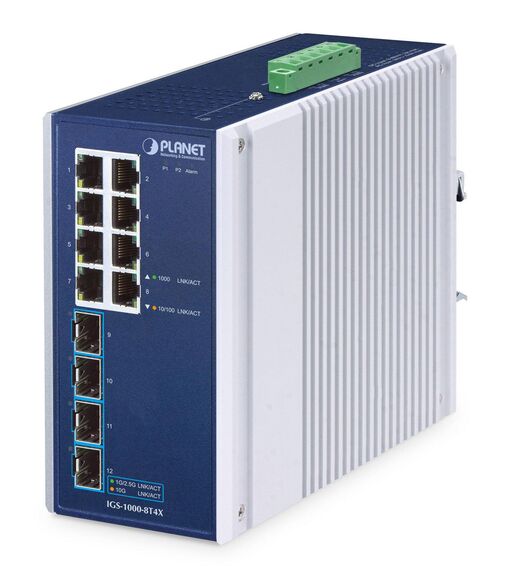

Featuring Plug and Play and 10G SFP+ uplink ports, PLANET IGS-1000-8T4X Industrial-grade, DIN-rail type Unmanaged Gigabit Ethernet Switch is perfect for heavy industrial environments. It features 8 10/100/1000BASE-T ports and 4 1G/2.5G/10GBASE-X SFP+ fiber optic uplink ports that provide long-distance, high-speed and stable data transmission to a remote core network.
The IGS-1000-8T4X is designed with redundant power system and is able to operate reliably, stably and quietly in any hardened environment without affecting its performance and operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing. Though it includes robust features designed for industrial Ethernet networks, its Plug and Play makes configuration easy.
10Gbps Fiber Ports and Multiple Dual Speed Ports Deliver High-speed Networking
Featuring a 10Gbps uplink, the IGS-1000-8T4X is suitable for connecting to an industrial backbone or high-capacity servers. Operating flawlessly across an extensive temperature range, it guarantees a non-blocking switch fabric, delivering astonishing wire-speed throughput of up to 96Gbps. The 10G fiber port serves as a backbone for high-bandwidth applications, such as video streaming, cloud computing, and virtualization, ensuring seamless and swift data transmission. This transformative capability simplifies the process of industrial LAN upgrades, efficiently catering to escalating bandwidth requirements.
10G Fiber-optic Linking Capability Enables Extension of Network Deployment
The SFP+ slot of the IGS-1000-8T4X is compatible with 10GBASE-SR or 10GBASE-LR (Small Form Factor Pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the 10 Gigabit Ethernet distance can be extended from 300 meters (multi-mode fiber cable) to 2/10/20/40/60/70/80 kilometers (single-mode fiber cable).
Dual Power Input for High Availability Network System
The IGS-1000-8T4X features a strong dual power input system with 9~48V DC to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the IGS-1000-8T4X via power supply 2 alternatively without any loss of operation.
Environmentally Hardened Design
With the IP30 metal industrial case, the IGS-1000-8T4X provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-1000-8T4X can be placed in almost any difficult environment.
Robust Protection
The IGS-1000-8T4X provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
Learn more: https://www.planet.com.tw/en/product/igs-1000-8t4x
|
Confezione: |
|
| |
Peso Lordo: 2 Kg
Dimensioni Lorde: 100x300x200 mm |
|
| |
|
|
|
PLANET - Sito web:http:// |
|
| |
|
|
| |
|
|
|
|
| |
|
