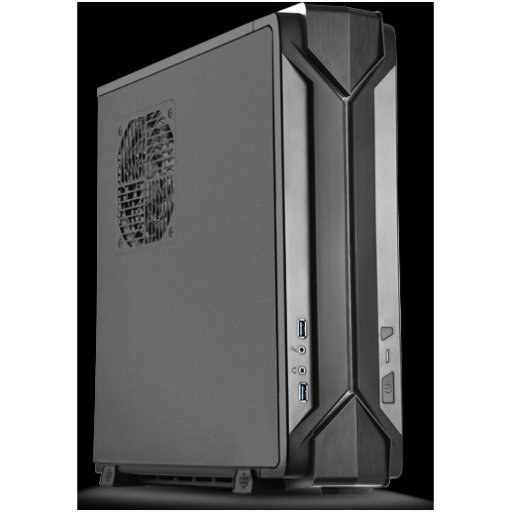

RVZ03 Introduction
SilverStone RVZ03 is a further evolution of the highly rated RAVEN Z RVZ01-E, a slim form factor case with tremendous capability. It has the same optimized interior that has room for a Std. ATX (PS2) power supply and Sup. for some the biggest consumer graphics cards on the market with superb air cooling performance. Designed for use in either vertical or horizontal orientation, it can be placed comfortably in any space-constrained environment that requires a powerful PC. For those looking to build a slim form factor PC with extra flair, the RVZ03s inclusion of RGB lighting and control box bring about another exciting chapter to the famed RAVEN series of computer cases.
Signature RAVEN styled front panel adorned with brilliant RGB light strip
Includes SilverStones easy-to-use custom RGB light strip control box, the LSB01
Mini-ITX motherboard e ATX PSU compatible for wide array of building possibilities
Support cards up to 13 inches (330mm) to fit most high-end GPUs for compute power far exceeding consoles
Maximum performance in slim form factor with Sup. for AIO liquid cooling
Positive air pressure design for excellent cooling/quietness and dust-prevention
Fits in nearly any environment with horizontal or vertical orientation
RVZ03 Specifications
Model No.
SST-RVZ03B (black)
SST-RVZ03W (white)
Material
Reinforced plastic outer shell, steel body
Motherboard
Mini-DTX, Mini-ITX
Drive bay
Internal
2.5" x 4*
Cooling system
Top
1 x 120mm fan, 1500rpm, 18dBA
Bottom
1 x 120mm fan, 1500rpm, 18dBA
1 x 120mm fan slot
Expansion slot
2
Front I/O port
USB 3.0 x 2
audio x 1
MIC x 1
Power supply
Optional PS2(ATX)
Expansion card
Compatible up to 13" (330mm) long, width restriction-5.88" (149mm)
Limitation of CPU cooler
83mm
Limitation of PSU
150mm**
Net weight
4.05 kg
Dimension
382mm (W) x 105mm (H) x 350mm (D), 14 Liters
15.04" (W) x 4.13" (H) x 13.78" (D), 14 Liters
Extra
Support Kensington lock
PCI Express riser card set x 1
RGB light strip control box x 1
* 2.5" drive on center bracket may be difficult or impossible to install due to power supply cable interference, we recommend using 140mm deep or shorter modular power supply with flat cables
** Maximum length for power supply is 150mm but we recommend 140mm deep power supply due to varying connector locations and the unique structure of RVZ03.Due to the use of internal power cord extension, we recommend not to exceed 800W when powering off a 110V outlet (no limit for 220V)
Confezione:
Peso Lordo: 5,29 Kg
Dimensioni Lorde: 430x450x200 mm
