  SCHEDA PRODOTTO
| . |
|

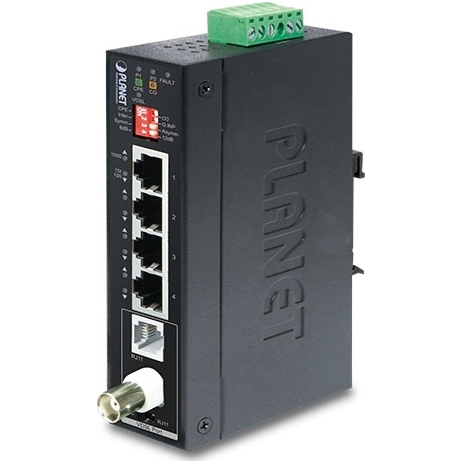

IP30 Industrial Gigabit Ethernet Extender w/ G.vectoring, 4-Port 10/100/1000T RJ45 (LAN), 1-Port BNC, 1-Port RJ11 (-40 to 75C)
Hardware Specifications
TP interface 4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
VDSL BNC 1 BNC female Ethernet over Coaxial port
Cabling:
Coaxial cable: 75 ohm
RG-6/U cable, less than12O/1000 ft
RG-59/U cable, less than 30O/1000 ft.
Maximum Distance:
Max. 1.2km with data transmission (3,937ft.)
VDSL RJ11 1 VDSL2/ADSL2+ RJ11 female phone jack
Twisted-pair telephone wires (AWG-24 or better) up to 1.2km (3,937ft.)
DIP Switch e Functionality DIP-1: Select CO or CPE mode
DIP-2: Select G.INP or Interleaved mode
DIP-3: Select Band Profile (Asymmetric or Symmetric)
DIP-4: Select SNR of 12dB or 8dB
LED Indicators Power 1/Power 2: Green
FAULT: Red
1000BASE-T LNK/ACT: Green
10/100BASE-TX LNK/ACK: Green
VDSL: Green
CO: Green
CPE: Green
ESD Protection 6KV DC
Enclosure IP30 slim metal case
Installation DIN-rail kit or wall-mount ear
Dimensions (W x D x H) 32 x 135 x 87.8mm
Weight 185g
Power Requirement DC input: Dual 12~48V DC, 0.4A max.
24V AC
Power Consumption 5.7 watts
Performance
Upstream/ Downstream Performance Table with RJ11 Cable
CO, Interleave, Asym, 8dB
200M -> 93Mbps/190Mbps
400M -> 67Mbps/164Mbps
600M -> 38Mbps/116Mbps
800M -> 24Mbps/59Mbps
1000M -> 9Mbps/45Mbps
1200M -> 6Mbps/30Mbps
CO, Interleave, Sym, 8dB
200M -> 143Mbps/148Mbps
400M -> 118Mbps/119Mbps
600M -> 71Mbps/75Mbps
800M -> 49Mbps/36Mbps
1000M -> 21Mbps/25Mbps
1200M -> 16Mbps/24Mbps
G.INP, ASym, 8dB
200M -> 92Mbps/190Mbps
400M -> 68Mbps/165Mbps
600M -> 37Mbps/112Mbps
800M -> 27Mbps/56Mbps
1000M -> 9Mbps/46Mbps
1200M -> 5Mbps/31Mbps
G.INP, sym, 8dB
200M -> 143Mbps/148Mbps
400M -> 116Mbps/115Mbps
600M -> 71Mbps/69Mbps
800M -> 49Mbps/32Mbps
1000M -> 19Mbps/27Mbps
1200M -> 16Mbps/23Mbps
CO, Interleave, Asym, 12dB
200M -> 85Mbps/174Mbps
400M -> 59Mbps/146Mbps
600M -> 28Mbps/94Mbps
800M -> 22Mbps/49Mbps
1000M -> 7Mbps/40Mbps
1200M -> 3Mbps/28Mbps
CO, Interleave, Sym, 12dB
200M -> 132Mbps/126Mbps
400M -> 103Mbps/104Mbps
600M -> 59Mbps/60Mbps
800M -> 38Mbps/27Mbps
1000M -> 15Mbps/24Mbps
1200M -> 6Mbps/20Mbps
G.INP, Asym, 12dB
200M -> 85Mbps/174Mbps
400M -> 57Mbps/144Mbps
600M -> 28Mbps/94Mbps
800M -> 22Mbps/49Mbps
1000M -> 7Mbps/40Mbps
1200M -> 3Mbps/28Mbps
G.INP, Sym, 12dB
200M -> 129Mbps/136Mbps
400M -> 99Mbps/96Mbps
600M -> 61Mbps/55Mbps
800M -> 39Mbps/24Mbps
1000M -> 15Mbps/26Mbps
1200M -> 12Mbps/20Mbps
Upstream/ Downstream Performance Table with Coaxial Cable
CO, Interleave, Asym, 8dB
200M -> 54Mbps/184Mbps
400M -> 49Mbps/148Mbps
600M -> 36Mbps/100Mbps
800M -> 21Mbps/50Mbps
1000M -> 7Mbps/42Mbps
1200M -> 5Mbps/27Mbps
CO, Interleave, Sym, 8dB
200M -> 131Mbps/148Mbps
400M -> 93Mbps/118Mbps
600M -> 77Mbps/66Mbps
800M -> 44Mbps/30Mbps
1000M -> 20Mbps/25Mbps
1200M -> 13Mbps/27Mbps
G.INP, ASym, 8dB
200M -> 89Mbps/185Mbps
400M -> 57Mbps/155Mbps
600M -> 33Mbps/75Mbps
800M -> 17Mbps/66Mbps
1000M -> 13Mbps/59Mbps
1200M -> 4Mbps/32Mbps
G.INP, sym, 8dB
200M -> 140Mbps/144Mbps
400M -> 104Mbps/113Mbps
600M -> 62Mbps/73Mbps
800M -> 40Mbps/29Mbps
1000M -> 20Mbps/27Mbps
1200M -> 14Mbps/20Mbps
CO, Interleave, Asym, 12dB
200M -> 75Mbps/169Mbps
400M -> 54Mbps/128Mbps
600M -> 26Mbps/80Mbps
800M -> 17Mbps/39Mbps
1000M -> 5Mbps/29Mbps
1200M -> 3Mbps/28Mbps
CO, Interleave, Sym, 12dB
200M -> 125Mbps/128Mbps
400M -> 89Mbps/99Mbps
600M -> 64Mbps/53Mbps
800M -> 37Mbps/26Mbps
1000M -> 19Mbps/28Mbps
1200M -> 15Mbps/20Mbps
G.INP, Asym, 12dB
200M -> 79Mbps/166Mbps
400M -> 47Mbps/137Mbps
600M -> 31Mbps/73Mbps
800M -> 13Mbps/45Mbps
1000M -> 6Mbps/38Mbps
1200M -> 3Mbps/22Mbps
G.INP, Sym, 12dB
200M -> 117Mbps/123Mbps
400M -> 89Mbps/96Mbps
600M -> 52Mbps/43Mbps
800M -> 39Mbps/24Mbps
1000M -> 15Mbps/26Mbps
1200M -> 12Mbps/20Mbps
Switch Specifications
Switch Processing Scheme Store-and-Forward
Address Table 2K entries
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Jumbo Packet Size 9K bytes
System Specifications
VDSL Compliance VDSL-DMT
ITU-T G.993.1 VDSL
ITU-T G.997.1
ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)
ITU-T G.993.5 G. Vectoring
ITU-T G.998
G.INP
ADSL Compliance Capable of ADSL2/2+ standard
ITU G.992.3 G.dmt.bis
ITU G.992.5 G.dmt.bisplus
Data Rate: Up to 24Mbps
Standards Conformance
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
ITU-T G.993.1 VDSL
ITU-T G.997.1
ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)
ITU-T G.993.5 G.Vectoring and G.INP
ITU-T G.998
Regulatory Compliance FCC Part 15 Class A, CE
Environment
Temperature Operating: -40~75 degrees C
Storage: -40~75 degrees C
Humidity Operating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)
Ordering Information
IVC-234GT
Industrial 1-Port BNC/RJ11 to 4-Port Gigabit Ethernet Extender
 |
Confezione: |
|
| |
Peso Lordo: 0,2 Kg
Dimensioni Lorde: 32x88x335 mm |
|
| |
|
|
|
