  SCHEDA PRODOTTO
| . |
|

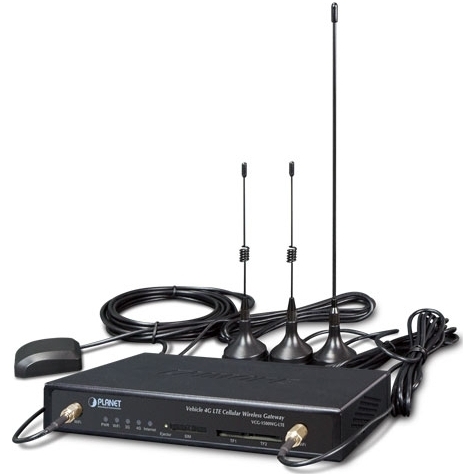

Internet of Vehicles via 4G LTE Cellular Gateway
PLANET VCG-1500WG-LTE is a reliable, secure and high-bandwidth communications vehicle cellular gateway for demanding mobile applications and IoV (Internet of Vehicles) deployments. It features 4G LTE (Long Term Evolution), wireless AP, five Ethernet ports (4 LAN and 1 WAN), GPS, VPN technology and bandwidth management bundled in a mountable metal case to establish a public network connection and allows passengers to access Internet.
Physical Port
4 10/100BASE-TX RJ45 LAN ports, auto-negotiation, auto MDI/MDI-X
1 10/100BASE-TX RJ45 WAN port, auto-negotiation, auto MDI/MDI-X
1 4G LTE 2.3 dBi antenna
2 2.4G WiFi 2dBi antennas
1 GPS antenna
1 SIM card slot
1 console port
2 TF card slots to save files for Wi-Fi advertising
Cellular Interface
Supports multi-band connectivity with FDD LTE/ TDD LTE/ WCDMA/ GSM/ LTE Cat4
Built-in SIM and broadband backup for network redundancy
One detachable antenna for 4G LTE connection
LED indicators for connection status (3G/4G)
Wi-Fi Interfaces
Complies with IEEE 802.11b/g/n 2.4GHz
Two detachable antennas for wireless connection
64-/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK (TKIP/AES encryption),
LED indicators for status
Case and Installation
IP30 metal case
Mounting brackets for vehicles
Power requirement: 6~32V DC
Supports 15KV DC Ethernet ESD protection
-25 to 65 degrees C operating temperature
Advanced Features
Supports demilitarized zone (DMZ).
Supports VPN client, including GRE, PPTP, IPSec, L2TP
Supports NAT port mapping function, such as SNAT, DNAT
Supports Static Routing to display current routing information of the gateway
Supports QoS for bandwidth management
Supports Dynamic DNS and PLANET DDNS
Supports WAN connection types: DHCP client, static IP and PPPoE client
Secures network connection
- IP filter
- URL filter
- Mac filter
Management
Gateway management interfaces
- Console/Telnet Command Line interface
- Web management
Gateway Maintenance
- Firmware upload via HTTP, TFTP
- Restore or Reset button for reset to factory default
- Dual images
SNTP (Simple Network Time Protocol)
System log
System tool, such as ping and trace
Configuration backup and restore
Supports CMS (Central Management System) and Wifidog for remote management and Wi-Fi advertising
Hardware Specifications
Copper Ports 4 LAN 10/100BASE-TX RJ45 auto-MDI/MDI-X ports
1 WAN 10/100BASE-TX RJ45 auto-MDI/MDI-X port
Console 1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
SIM Interface 1 x SIM card slot with mini SIM card tray
Cellular Antenna 1 x 2dBi external antenna with SMa connector for LTE
Wi-Fi Antenna 2 x 2dBi external antennas with SMa connectors for 2.4GHz
GPS Antenna 1 x 28dB gain external antenna with SMa connectors for GPS -3m
USB Interface 1 x USB 2.0 for external storage
TF Card Interface 2 x TF cards for storing thousands of advertising data, max. capacity up to 128G for each
Connector Standard 4-pin vehicle power jack for power input
Reset Button > 5 sec: Factory default
ESD Protection 15KV DC
Installation Mounting brackets for vehicles
LED Indicators System:
PWR (Red)
Ethernet Interfaces (Port1-4 and WAN Port):
LNK (Green)
ACT (Orange)
LTE SIM and Signal :
3G/4G (Blue)
Wi-Fi (Blue)
Internet (Blue)
Dimensions (W x D x H) 168 x 104 x 25 mm (not including antenna and connector)
Weight 537g (not including antenna)
Power Requirements DC 6~32V DC, 1.5A
Power Consumption 3 watts/10.23 BTU
Multi Band Supports
EU Model - FDD LTE B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800)
- TDD LTE B38/B40/B41 (2600/2300/2500)
- WCDMa B1/B5/B8 (2100/850/900)
- GSM/EDGE B3/B8 (1800/900)
US Model - FDD LTE B2/B4/B5/B13/B17/B25 (1900/AWS/850/700)
- WCDMa B1/B2/B4/B5/B8 (2100/1900/AWS/850/900)
- EVDO BC10/BC0/BC1 (1700/800/1900)
- GSM/GPRS/EDGE (850/900/1800/1900)
LTE Data Rate 20MHz bandwidth: 100Mbps (DL), 50Mbps (UL)
Wireless Specifications
Standard IEEE 802.11b/g/n 2.4GHz
Wireless Mode Access Point
Operating Channels FCC: 1~11, ETSI: 1~13
Encryption Security 64-/128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Data Rate Up to 300Mbps
Transmission Distance Up to 150 meters
*The estimated transmission distance is based on the theory.
The actual distance will vary in different environments.
Advanced Functions
VPN GRE, PPTP, IPSec, L2TP
QoS Bandwidth management
WAN Connection Type PPPoE, Static, DHCP client
Wifidog Wi-Fi authentication and advertising
Secure Network IP filter
URL filter
MAC filter
Other Supports demilitarized zone (DMZ)
Supports NAT port mapping function, UPnP
Supports Dynamic DNS
Management
Basic Management Interfaces Console, Telnet, Web browser
Standards Conformance
Regulatory Compliance CE, FCC
Standards and Protocols Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x flow control and back pressure
RFC 768 UDP
RFC 791 IP
RFC 792 ICMP
RFC 5321 SMTP
RFC 2068 HTTP
RFC 1939 POP3
RFC 854 TELNET
RFC 959 FTP
Environment
Operating Temperature: -25 ~ 65 degrees C
Relative Humidity: 95% (non-condensing)
Storage Temperature: -40 ~ 85 degrees C
Relative Humidity: 95% (non-condensing)
Ordering Information
VCG-1500WG-LTE-EU
Vehicle 4G LTE Cellular Wireless Gateway with 5-Port 10/100TX (1 SIM Card Slot, 802.11n, GPS, -25~65 degrees C, LTE Band B1/B3/B5/B7/B8/B20)
VCG-1500WG-LTE-US
Vehicle 4G LTE Cellular Wireless Gateway with 5-Port 10/100TX (1-SIM Card Slot, 802.11n, GPS, -25~65 degrees C, LTE Band B2/B4/B5/B13/B17/B25)
 |
